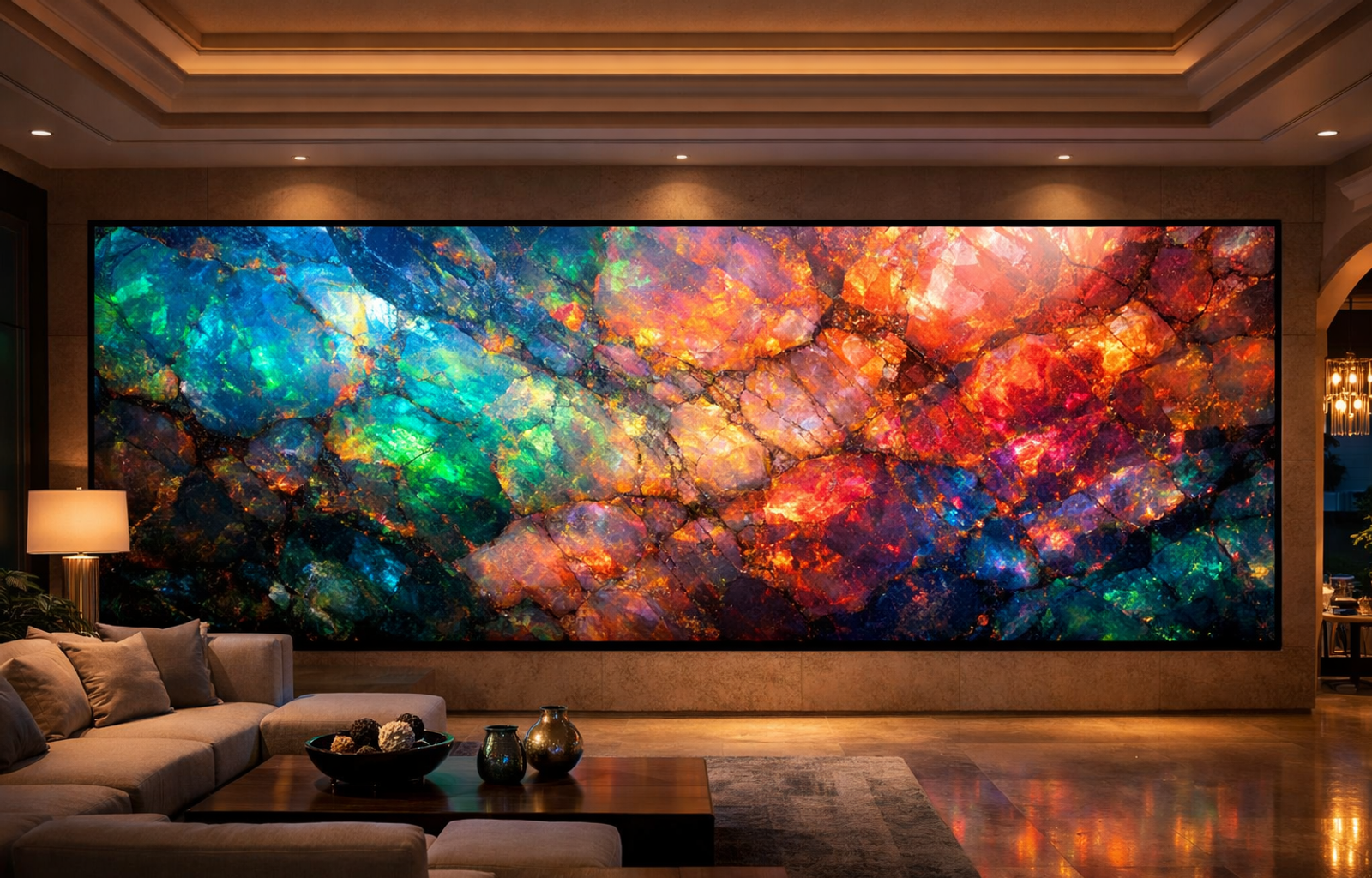

Large-format video wall in a residential media room
OPAL SCREENS

Premium MicroLED
Video Walls

Bring cinema, live sports and gaming home on a seamless MicroLED wall, sized for your room and built around how you watch.

Explore the lineup Find a dealer

A bigger part of home

Cinema nights.
Game days. Your space.

A continuous image, without bezels between panels. Opal's modular displays bring large-format entertainment into private cinemas, shared living rooms and outdoor spaces.

Private cinemaMake room for the big picture.Home theater displays →Sports & gamingBring the action home.Plan a gaming room →Outdoor livingTake entertainment outside.Explore Water Series →
The Opal collection

Find your MicroLED wall.

Five series, each with a clear purpose. Choose around the way you watch, the room and the distance to your seat.
How to choose the right pixel pitch for your space →
Flagship cinema & gaming

Boulder Series

BLACKFIRESILKSTREAM

Bring 4K120 gaming and 10-bit HDR to an architectural-scale screen. Boulder combines HDMI 2.1 connectivity, BlackFire and SilkStream for private cinemas and entertainment rooms.

4K up to 120HzVideo Input
384HzPanel Refresh
1,000 nitsBrightness
Specifications
  • Pixel Pitch0.9mm
  • Video Input4K up to 120Hz
  • Panel Refresh384Hz
  • Brightness1,000 nits
  • Contrast≤ 100,000:1
  • Color Depth21-bit+
  • Viewing Angle170°
  • EnvironmentIndoor · IP43
  • PiP SupportYes w/ Scaling
Download Spec Sheet
Detail, up close

Onyx Series

BLACKFIRENANOPIX

Fine-pitch detail for rooms where you sit closer. Onyx offers 0.7mm and 0.6mm options, pairing BlackFire contrast with NanoPix color precision.

0.7 / 0.6mmPixel Pitch
4K @ 60HzResolution
600 nitsBrightness
Specifications
  • Pixel Pitch0.7 / 0.6mm
  • Resolution4K @ 60Hz
  • Brightness600 nits
  • Contrast≤ 100,000:1
  • Color Depth21-bit+
  • Viewing Angle170°
  • EnvironmentIndoor · IP43
  • PiP SupportYes w/ Scaling
Download Spec Sheet
Bright rooms. Big entertainment.

Crystal Series

BLACKFIRESILKSTREAM

Movie nights and afternoon sports share the same screen. Crystal combines 1,000-nit brightness with BlackFire and SilkStream, accepting 4K60 or 1080p120 video.

4K60 / 1080p120Video Input
384HzPanel Refresh
1,000 nitsBrightness
Specifications
  • Pixel Pitch0.9mm & 1.2mm
  • Video Input4K60 / 1080p120
  • Panel Refresh384Hz
  • Brightness1,000 nits
  • Contrast≤ 100,000:1
  • Color Depth21-bit+
  • Viewing Angle170°
  • EnvironmentIndoor · IP43
  • PiP SupportYes w/ Scaling
Download Spec Sheet
Entertainment, outdoors

Water Series

Bring the big screen to a terrace, poolside lounge or outdoor living room. Water pairs 4,000-nit brightness with IP65 protection for outdoor installations.

1.2 / 1.5 / 1.875mmPixel Pitch
4,000 nitsBrightness
IP65Weather Rating
Specifications
  • Pixel Pitch1.2 / 1.5 / 1.875mm
  • Resolution4K @ 60Hz
  • Brightness4,000 nits
  • Contrast100,000:1
  • Color Depth10-bit
  • Viewing Angle170°
  • Weather RatingIP65
  • PiP SupportYes, Optional
Download Spec Sheet
BlackFire. Your choice of pitch.

Doublet Series

BLACKFIRE

Build the picture around your space. Doublet brings BlackFire to 0.9mm, 1.2mm and 1.5mm configurations, with video input up to 60Hz.

0.9 / 1.2 / 1.5mmPixel Pitch
4K @ 60HzResolution
600 nitsBrightness
Specifications
  • Pixel Pitch0.9 / 1.2 / 1.5mm
  • Resolution4K @ 60Hz
  • Brightness600 nits
  • Contrast100,000:1
  • Color Depth10-bit
  • Viewing Angle170°
  • EnvironmentIndoor · IP43
  • PiP SupportYes
Download Spec Sheet
Made to fit the room.Standard formats from 110 to 270 inches, with custom layouts built from modular cabinets.Explore sizes & formats →

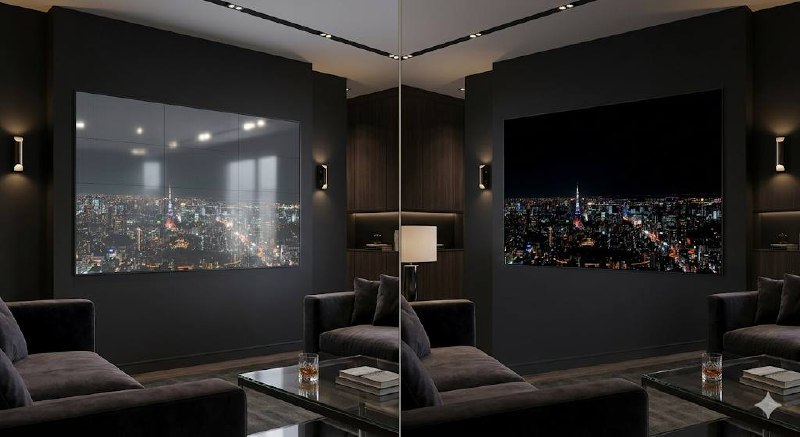

Standard LED vs BlackFire comparison
Proprietary Technology

BLACKFIRE

Rich contrast. A low-glare surface.

BlackFire combines a dark, low-glare surface with direct-view pixels. It brings depth to night scenes and definition to bright images, helping the picture hold its presence in a lived-in room.

Available on Boulder, Onyx, Crystal and Doublet.

Deep
Black levels
Low
Glare
Seamless
Learn how BlackFire compares to traditional LED →
0.6mm
Precision Engineering
NanoPix
Fine detail deserves consistent color.

A fine-pitch screen brings you closer to the image. NanoPix calibration helps maintain color uniformity across Onyx panels, from detailed artwork to the close-up in a favorite film.

Exclusive to Onyx, available in 0.7mm and 0.6mm pixel-pitch options.

0.6mm
Pixel Pitch
Ultra
Clarity
Close
Viewing
60Hz
Standard refresh rate
60
Standard
120
High
384
SilkStream
Motion Technology

SILKSTREAM

384 Hz Full-Panel Refresh

Precision light timing behind every frame. SilkStream brings 384Hz panel refresh to Boulder and Crystal, with video input up to 120Hz.

Boulder accepts 4K120 through HDMI 2.1. Crystal accepts 4K60 or 1080p120. Both use the same SilkStream panel architecture.

384Hz
Full-Panel Refresh
120Hz
Maximum Video Input
15,360Hz
Per-Pixel Refresh
Deep dive into SilkStream technology →
Why Opal Screens

Built around how you watch.

Picture quality is only part of the system. Your dealer brings the display, sources and room together.

Authorized dealer support

Work with an integrator who coordinates design, installation, commissioning and ongoing service.

4K display configurations

Choose the cabinet layout and pixel pitch together to achieve the intended image size and native resolution.

Boulder 10-bit HDR

Bring high-frame-rate 4K sources and 10-bit HDR to the flagship Boulder configuration.

High-frame-rate inputs

Boulder supports 4K120, while Crystal supports 1080p120 for high-frame-rate gaming.

More than one source

Picture-in-picture options support multiple feeds for sports and other multi-source viewing.

Custom sizes & formats

Choose standard 16:9, ultrawide or custom cabinet layouts that work with your architecture.

Architectural fit

A screen that belongs in the room.

From a dedicated cinema to an ultrawide media wall, cabinet-based construction gives your design team more choice in scale and proportion. Your dealer coordinates the layout, finished dimensions and service access.
  • Standard 16:9 up to ultra-wide 32:9
  • Completely custom aspect ratios
  • Curved and angled configurations
  • Seamless modular panel design
  • Cabinet layouts tailored to your space
16:9
21:9
32:9
Custom
Indoors & out

Where will you watch?

A private screening room, a place to gather, or an evening on the terrace. Choose the display for its surroundings.

Home theaters & living spaces

Bring movies, sports and digital art into the home. Indoor series also serve boardrooms, hospitality spaces and other professionally designed interiors.

Explore home theater →Commercial projects →Houses of worship →

Outdoor living

Water Series combines 4,000-nit brightness with IP65 protection, bringing large-format viewing to terraces, patios and outdoor entertainment areas.

View Water Series →
Common Questions

MicroLED, explained.

A MicroLED video wall uses modular, self-emissive panels to form one continuous image without bezels between cabinets. Opal Screens offers standard formats from 110 to 270 inches, custom aspect ratios and 4K configurations. Pixel-pitch options reach 0.6mm for close-viewing spaces.

BlackFire is the display technology available on Boulder, Onyx, Crystal and Doublet. Its dark, low-glare surface supports deep blacks and strong contrast in a continuous, bezel-free image.

SilkStream is the high-refresh architecture on Boulder and Crystal. Both feature 384Hz panel refresh and 15,360Hz per-pixel refresh through a 1/40 scan architecture. Boulder accepts 4K120 input through HDMI 2.1; Crystal accepts 4K60 or 1080p120.

Choose pixel pitch around seating distance, screen dimensions and native resolution. Onyx offers 0.7mm and 0.6mm; Boulder offers 0.9mm; Crystal offers 0.9mm and 1.2mm; Doublet offers 0.9mm, 1.2mm and 1.5mm. An authorized dealer can help you evaluate the image from your intended seats.

A MicroLED wall produces light at the display surface; a projector throws light onto a separate screen. MicroLED supports bright, large-format viewing without a projection beam or ceiling-mounted projector. Projection offers different screen, room and acoustic design options. Room lighting, viewing habits and installation requirements should guide the choice.

MicroLED vs. projection →Room cooling guide →Planning with your design team →
Dealer Network

See what fits your home.

Talk through your room, screen size and viewing priorities with an authorized Opal dealer.
Speak to a Dealer →
Get in Touch

Tell us about your space.

Based in the USA

Connect with authorized dealers and integrators serving projects across the United States.

Dealer Program

Authorized integrators can ask about product training, technical resources and dealer support.

Custom Projects

Share your room plans, preferred image dimensions and viewing priorities for a dealer-led specification.
